Plate Assembly

This section shows the successful first fit up of the plates, to the pillars, using the custom machined BA screws and washers. The paper template has not yet been removed, as it will still be used to facilitate planting the train.

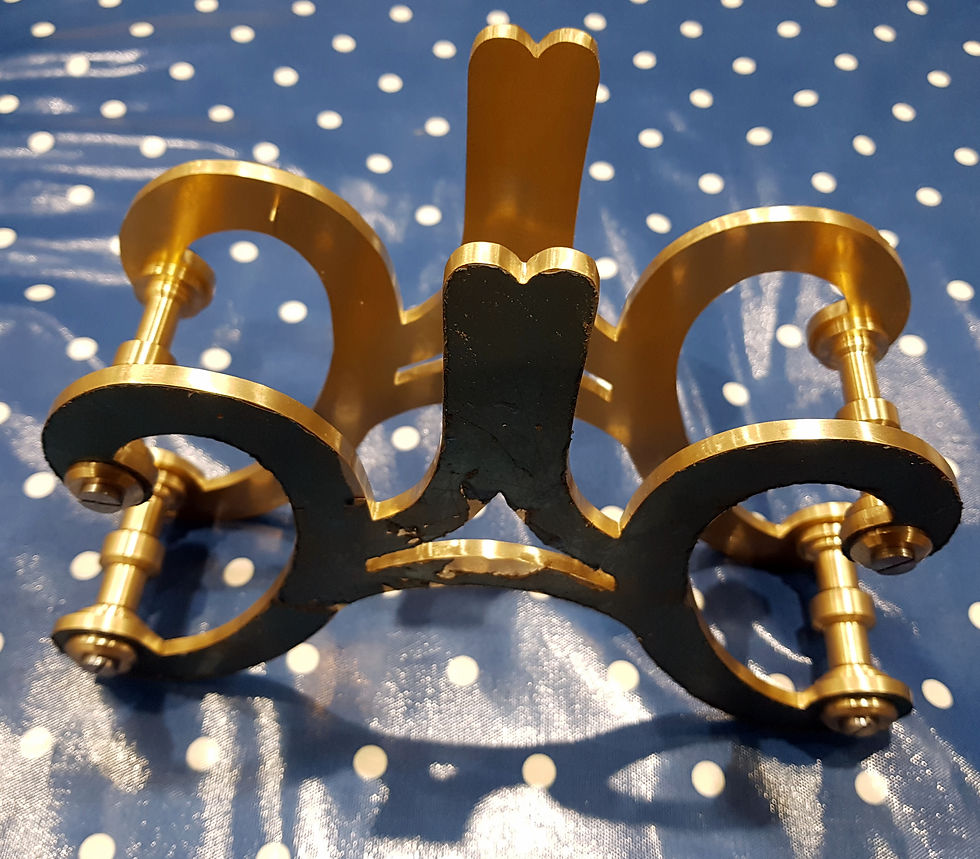

Assembled plates - first fit up

Assembled plates - first fit up - front view

Assembled plates - first fit up - back view
